Install RustDesk Visually Using 1Panel¶
RustDesk is an open-source remote support and remote desktop tool designed to provide users with convenient remote assistance and remote access capabilities.
1. Open the App Store¶

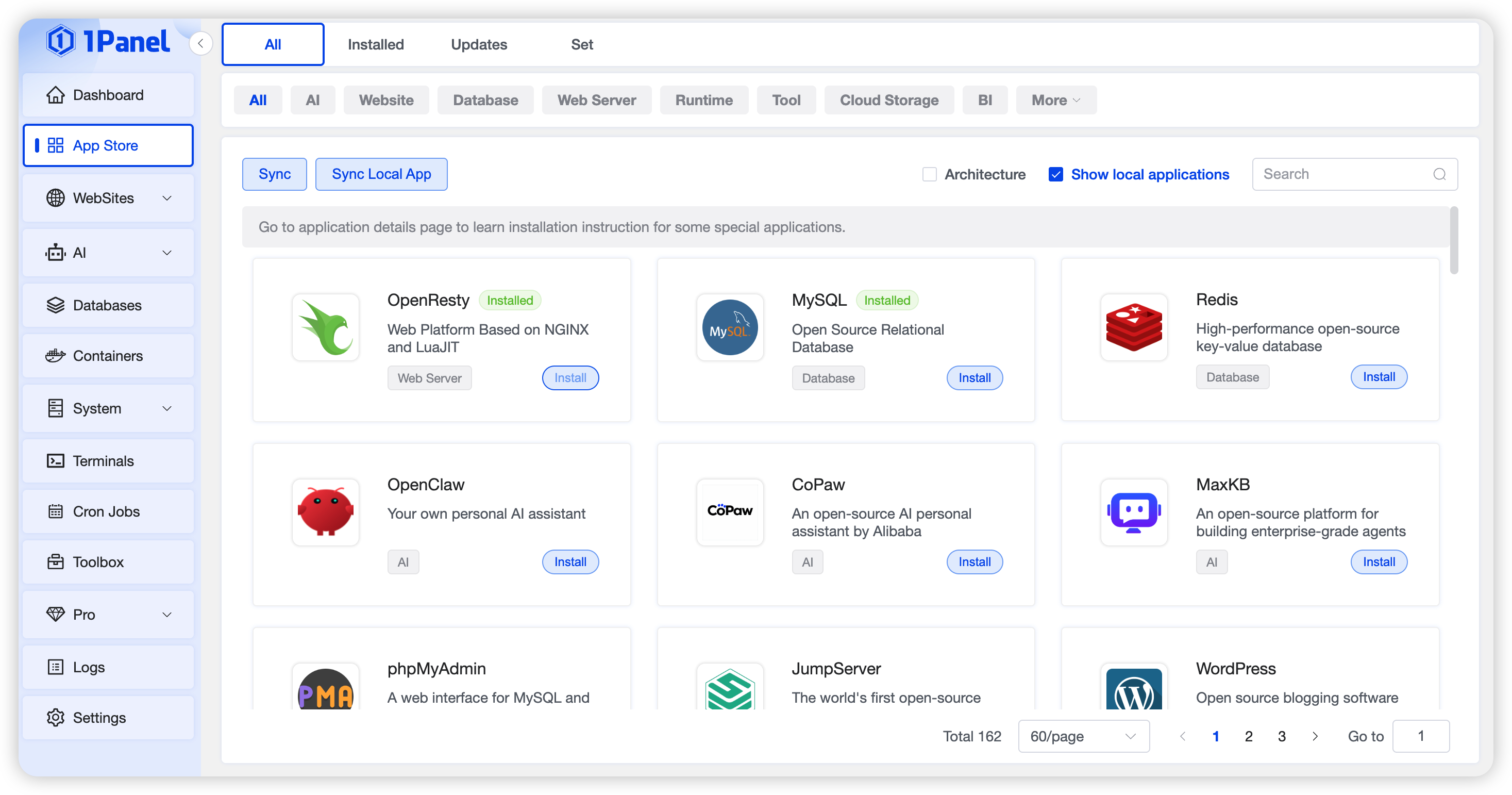

After entering the 1Panel console, click App Store in the left menu.
2. Search for RustDesk and Install¶

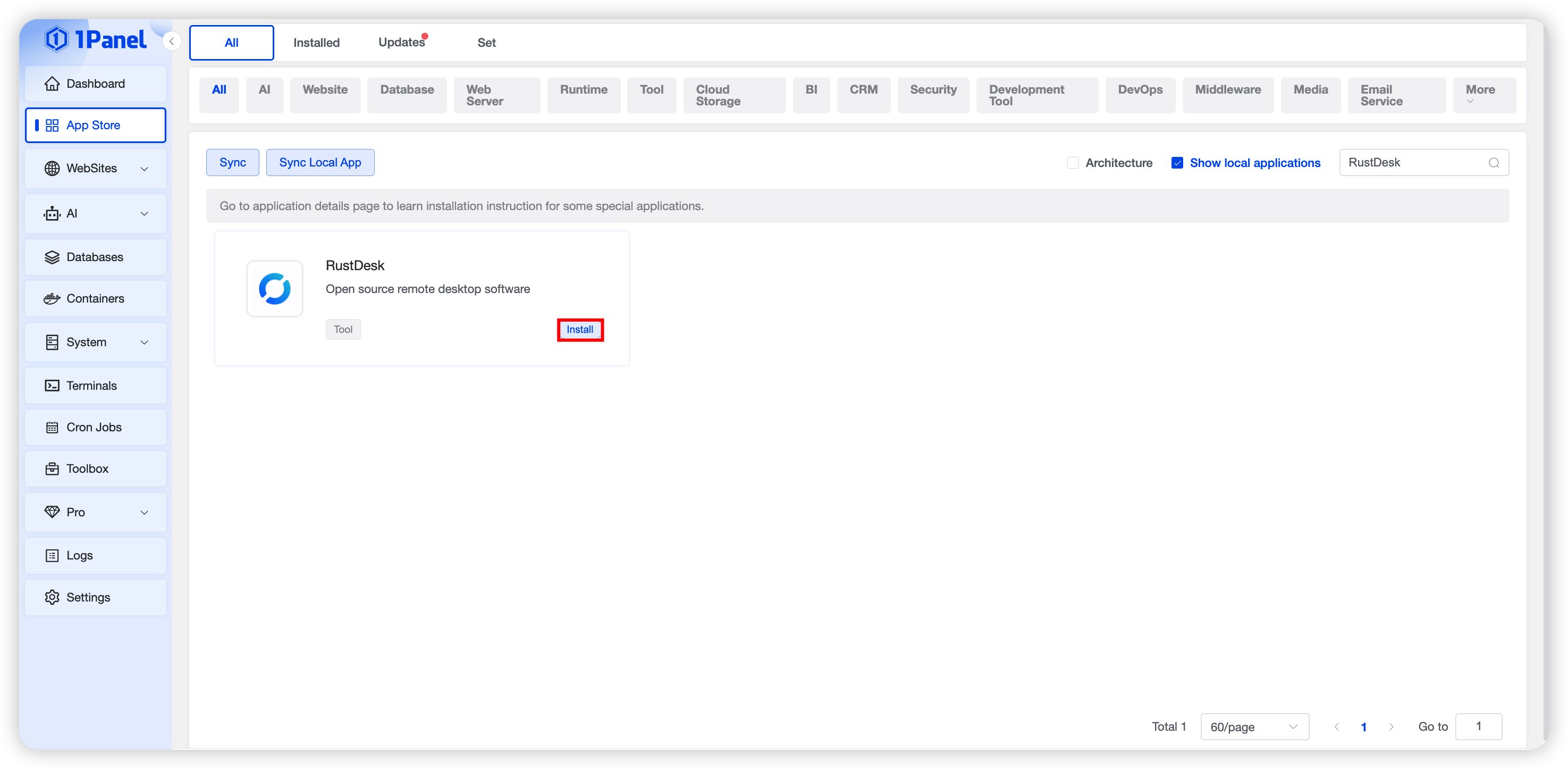

Enter RustDesk in the search box in the upper right corner, click the application card to go to the details page, then select Install.

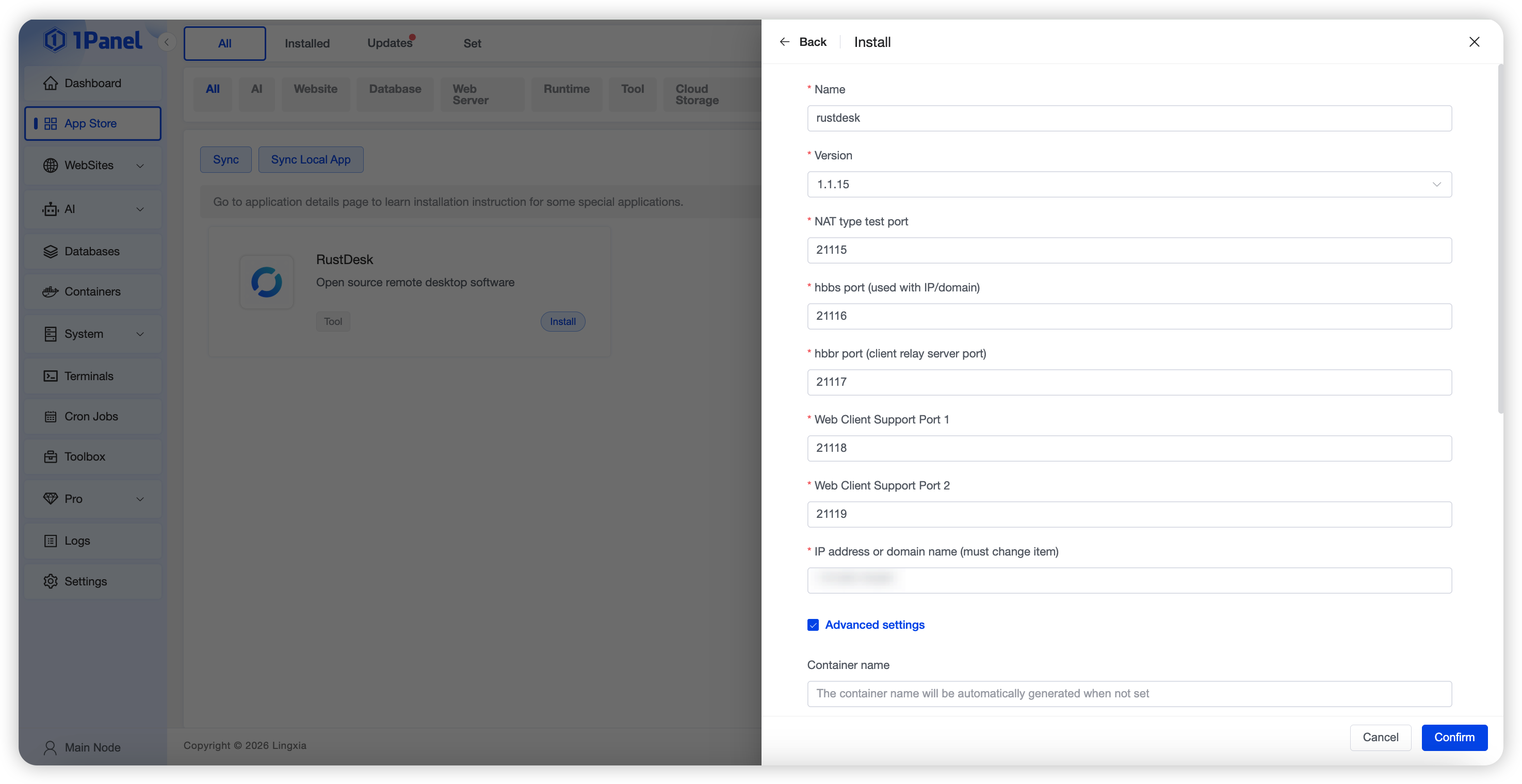

3. Configure Installation Parameters¶
You can configure the following as needed:
- Name: Customize the application name (default: rustdesk)
- Version: Select the desired RustDesk version from the dropdown
- NAT Type Test Port: Defaults to 21115
- hbbs Port (for relay server): Defaults to 21116
- hbbr Port (client-client relay server port): Defaults to 21117
- Web Client Port 1: Defaults to 21118
- Web Client Port 2: Defaults to 21119
- IP Address or Domain (Required): Enter the public IP address or domain name of the server
- Port External Access: When enabled, allows external network access to the application ports
After confirming the settings are correct, click the Confirm button to start installation.
Wait for the installation to complete.
4. Configure and Use RustDesk¶

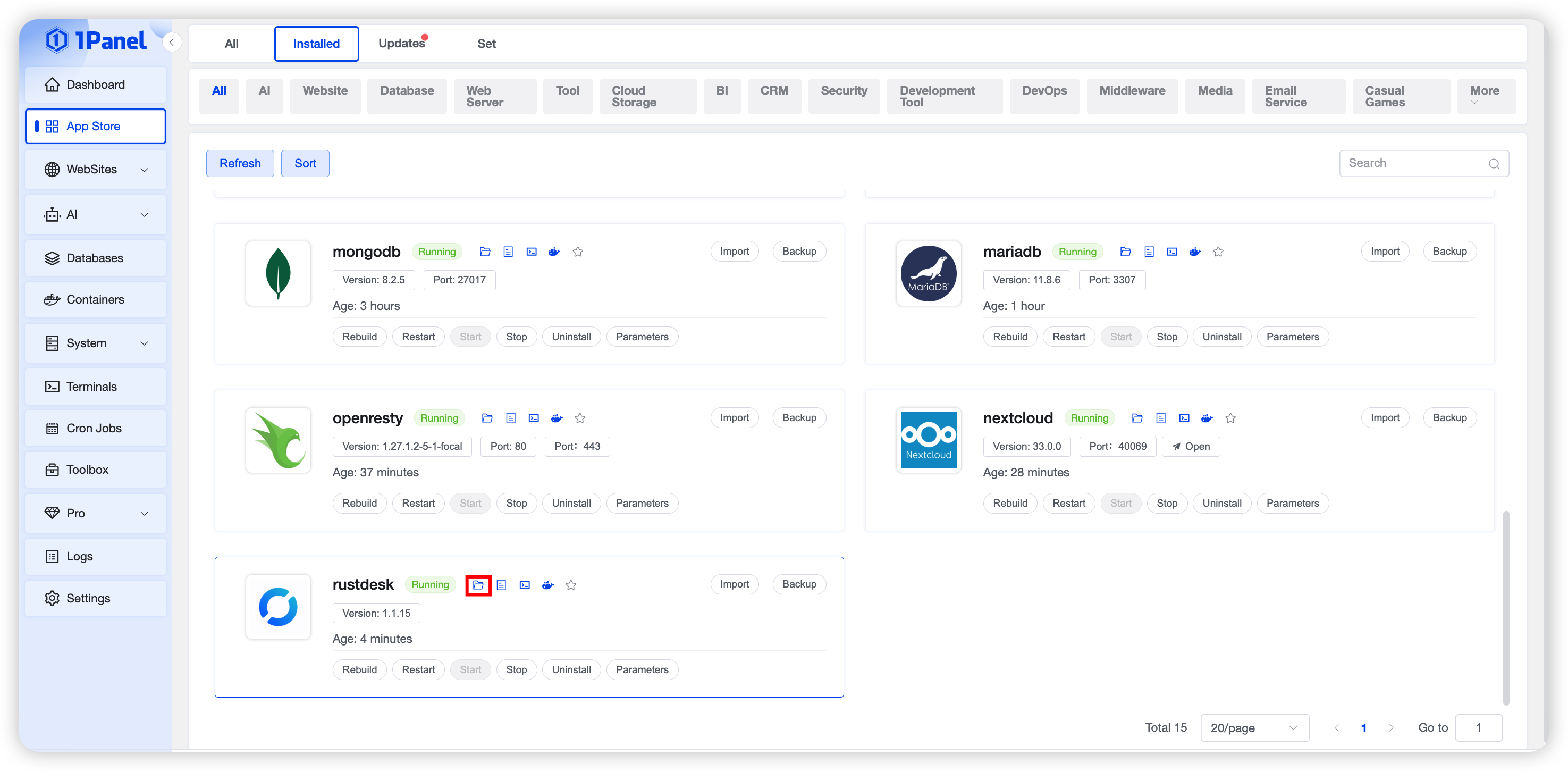

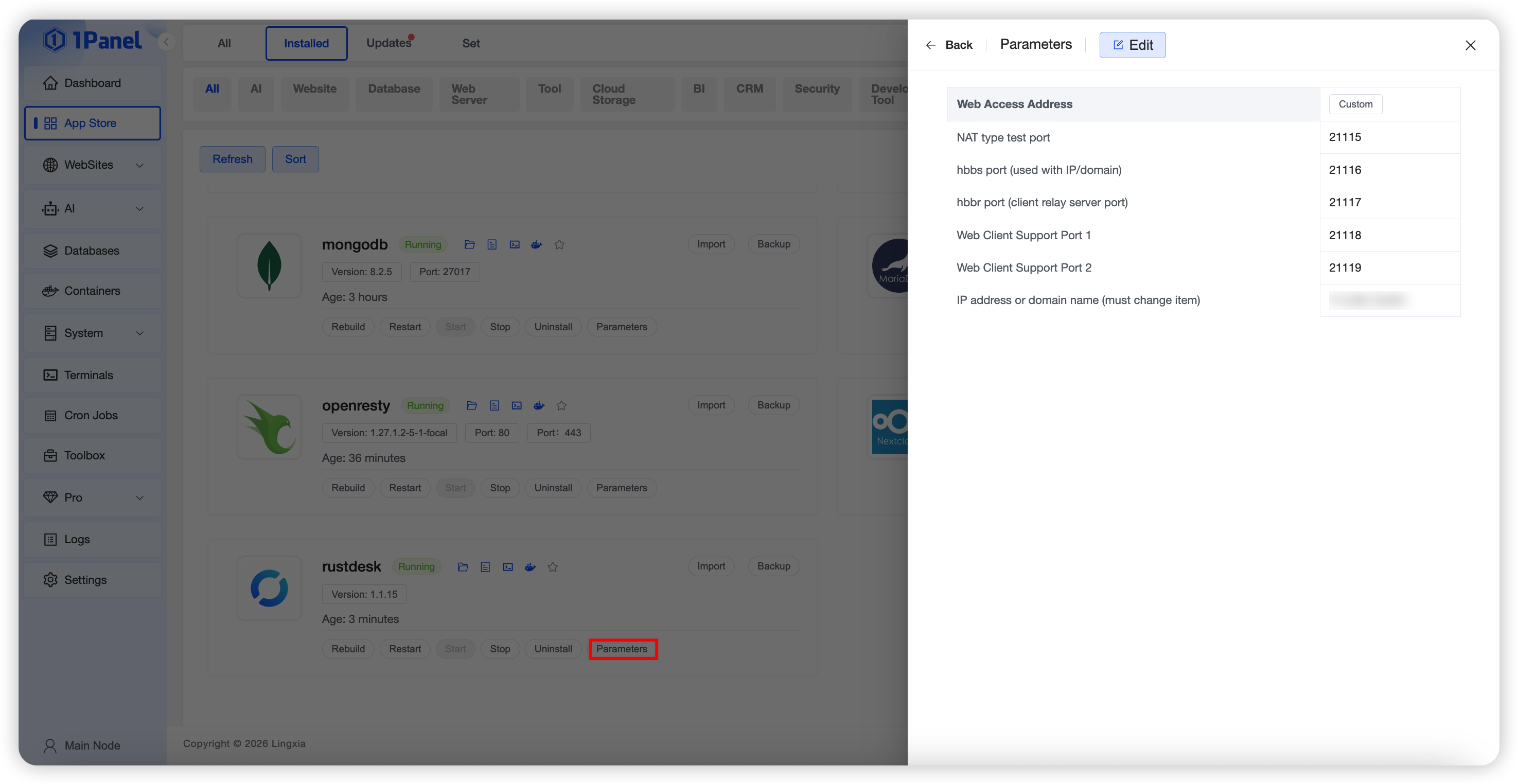

Click Parameters to get the configuration information.
Enter the installation directory.

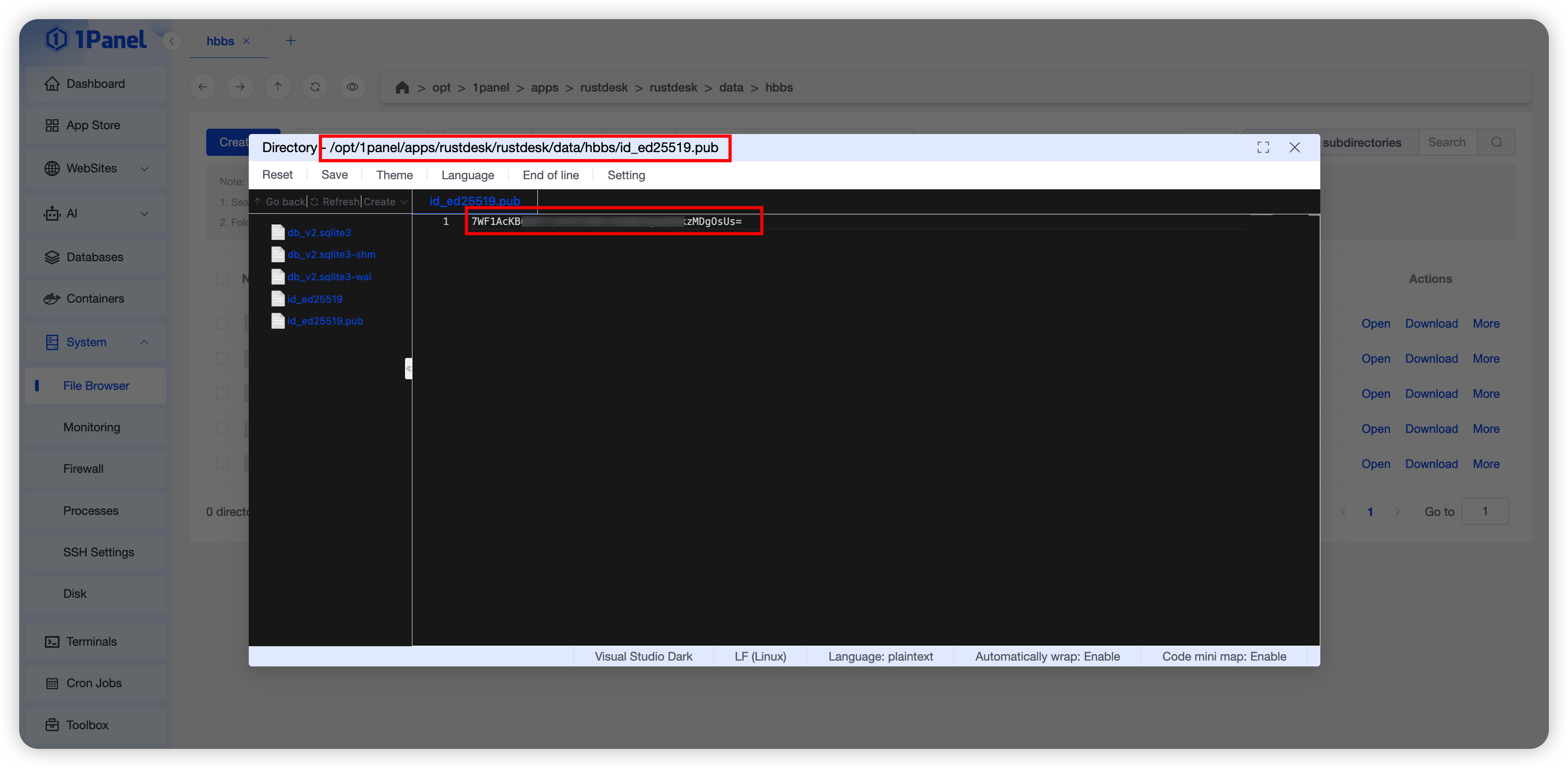

Locate the corresponding pub file and retrieve the key.

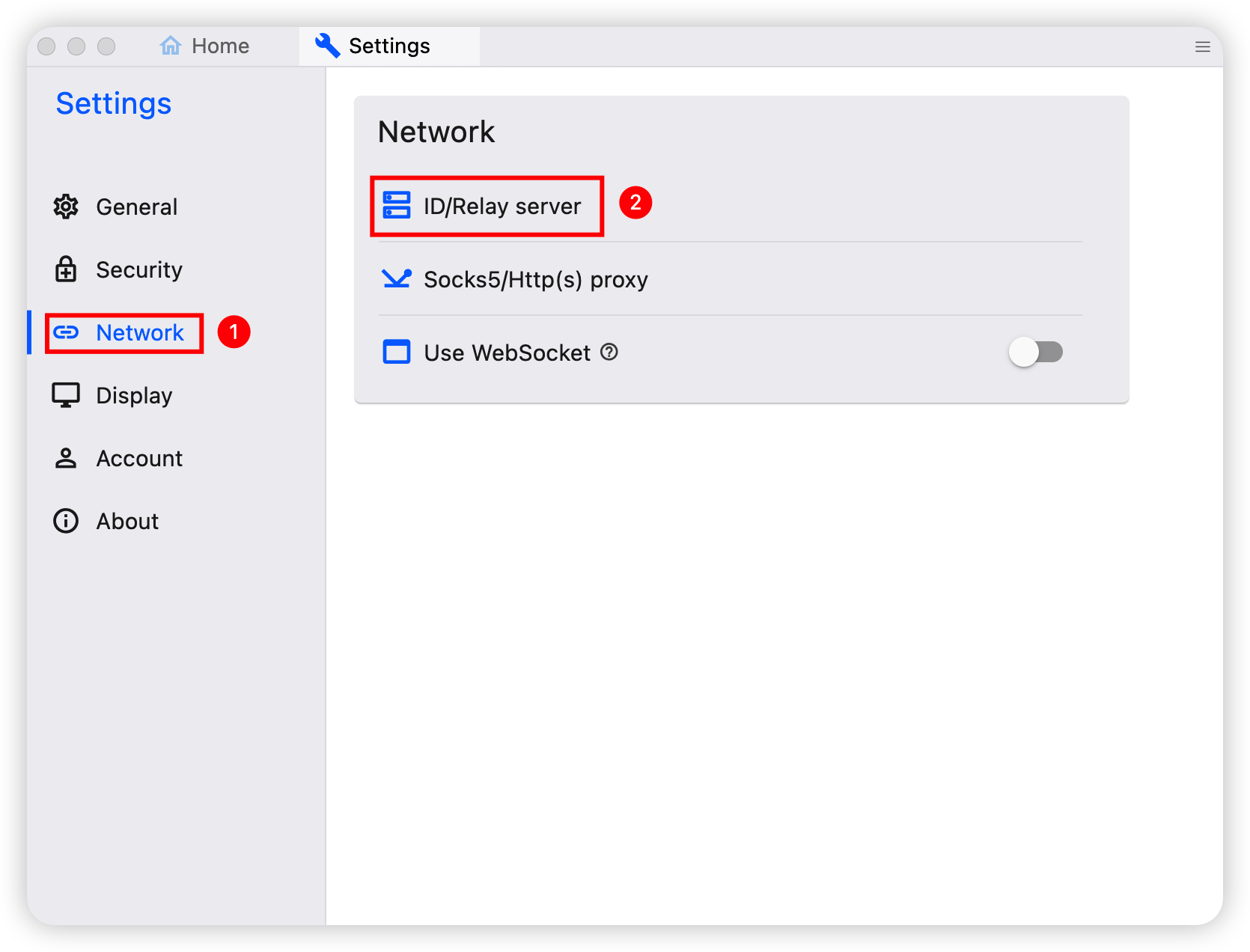

Download the client from https://github.com/rustdesk/rustdesk/releases. After downloading, open the client, go to Settings, and select Relay Server.

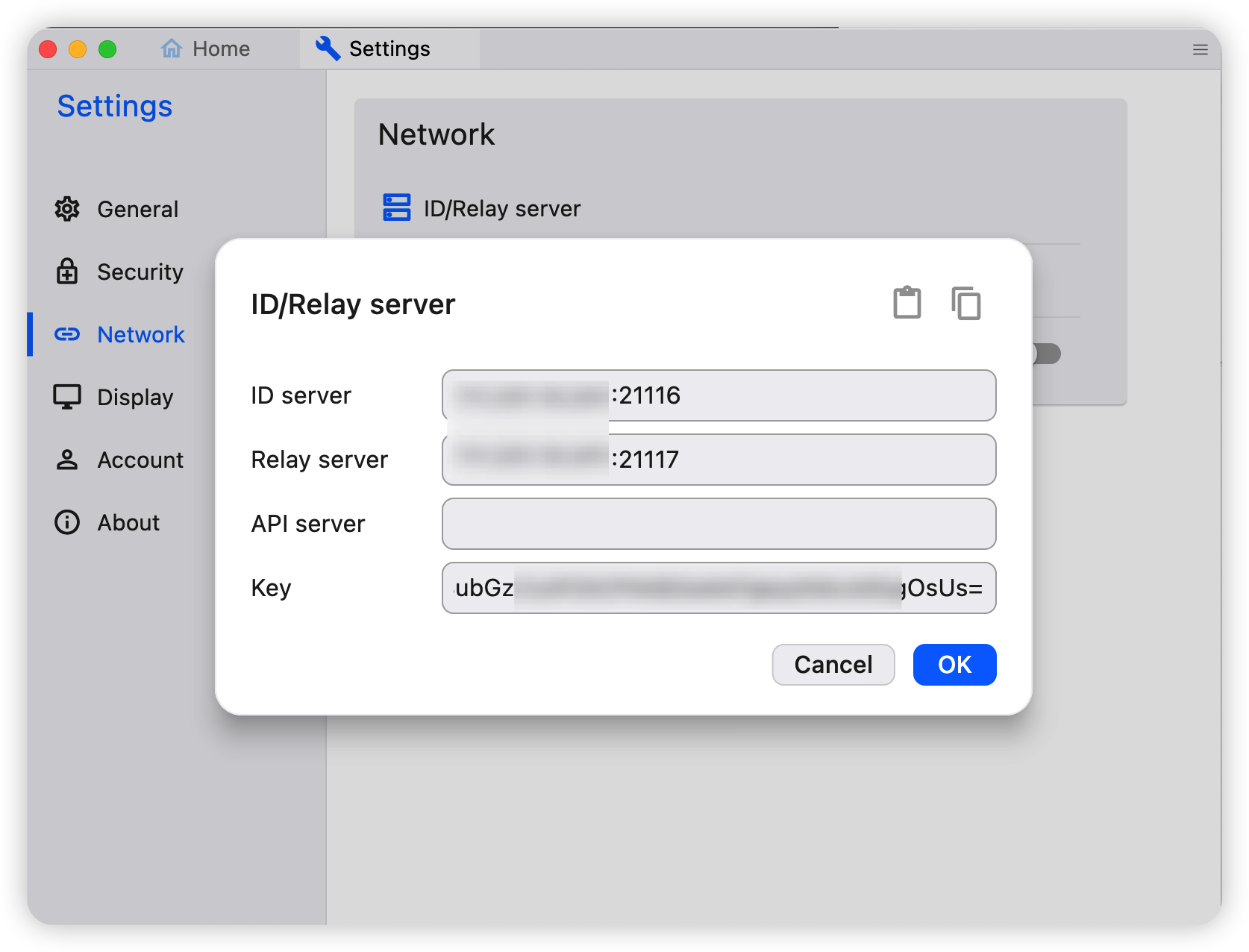

Fill in the corresponding information.

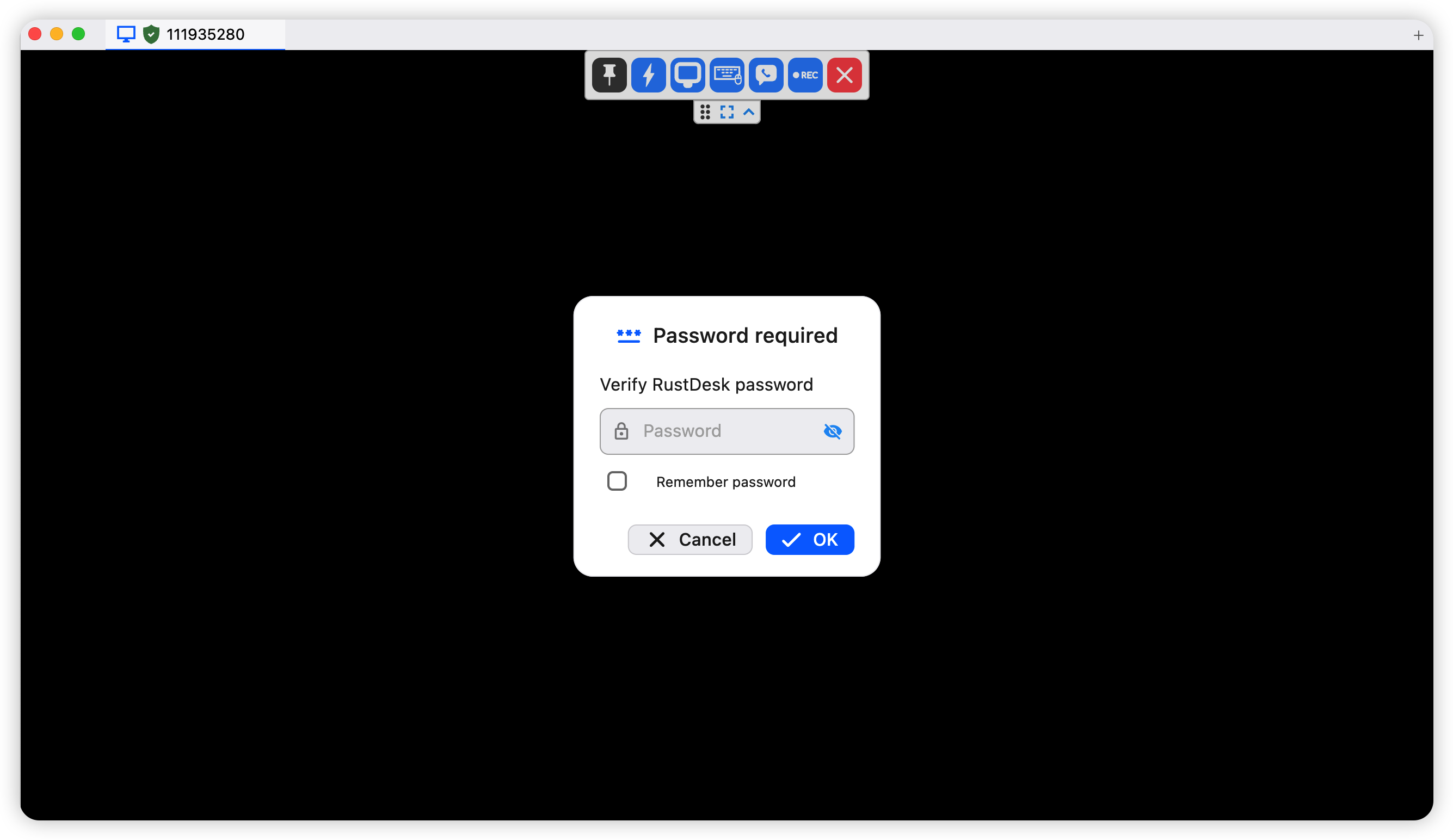

On the client of another host, fill in the same information, then enter the connection details to establish a remote connection.
