Install Redis Visually Using 1Panel

Redis is an open-source in-memory database commonly used as a caching system or key-value storage database.

1. Open the App Store

After entering the 1Panel console, click App Store in the left menu.

image-20251016110510084

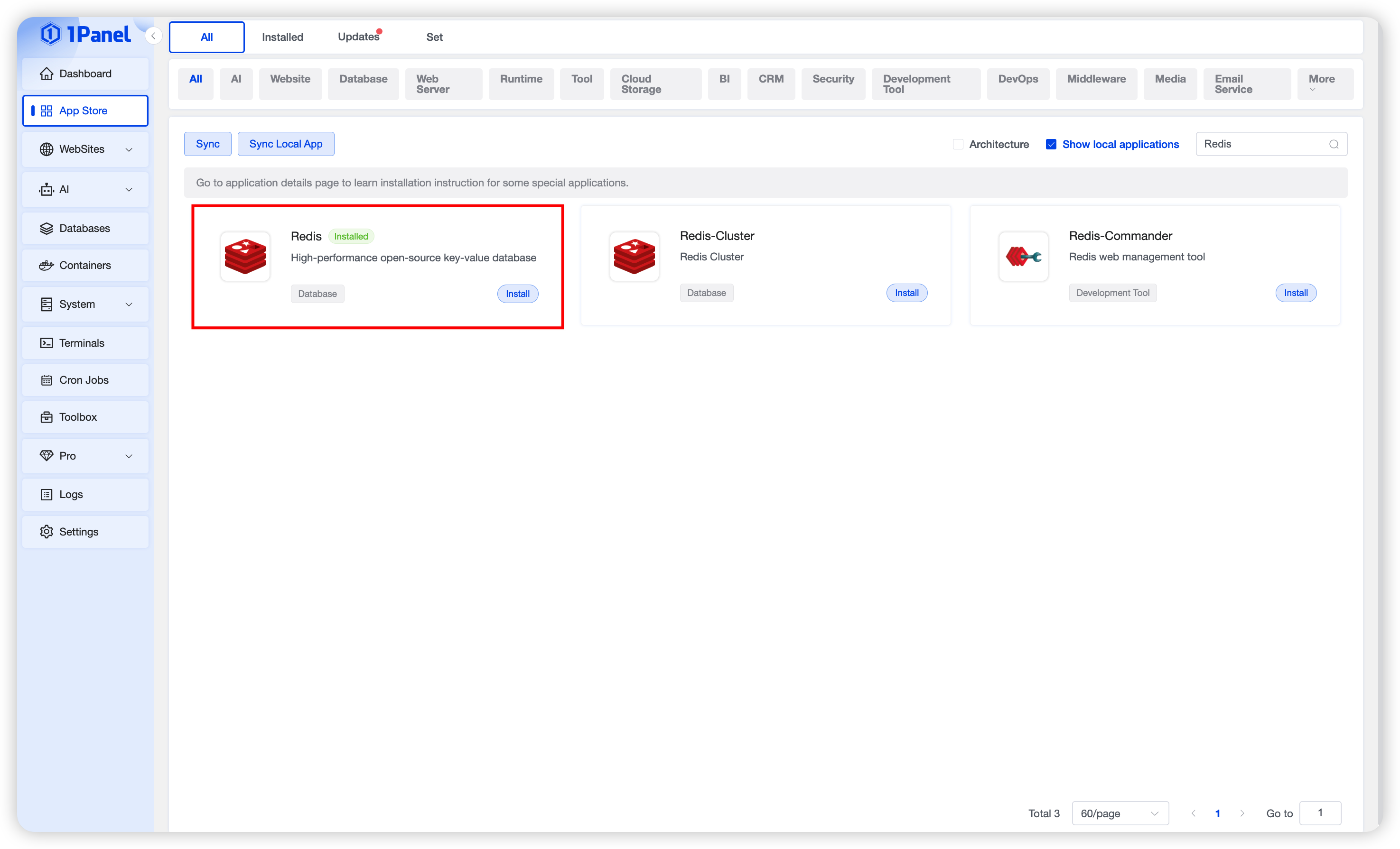

2. Search for Redis and Install

Enter Redis in the search box in the upper right corner, select the first result, click the application card to go to the details page, then select Install.

image-20251016141645215

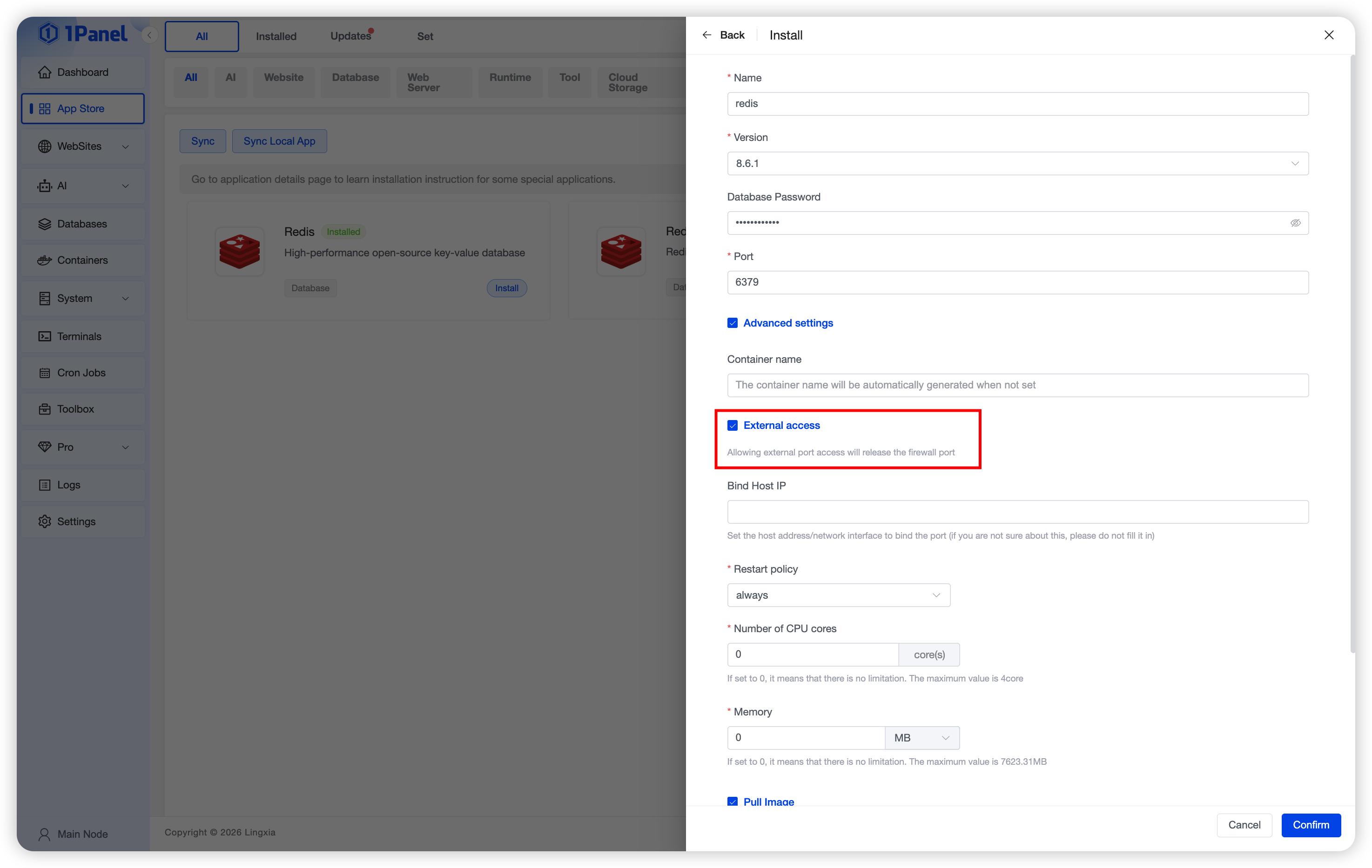

3. Configure Installation Parameters

You can configure the following as needed:

  • Name: Default application name in the input field
  • Version: Select the required version
  • Root Password: Randomly generated by default
  • Port: Default 6379 (can be adjusted if conflicting with existing services)
  • Port External Access: When enabled, allows external network connections to this database port

After confirming the settings are correct, click the Confirm button to start installation.

image-20251016141905753

Wait for the installation to complete.

4. Connect to the Redis Database

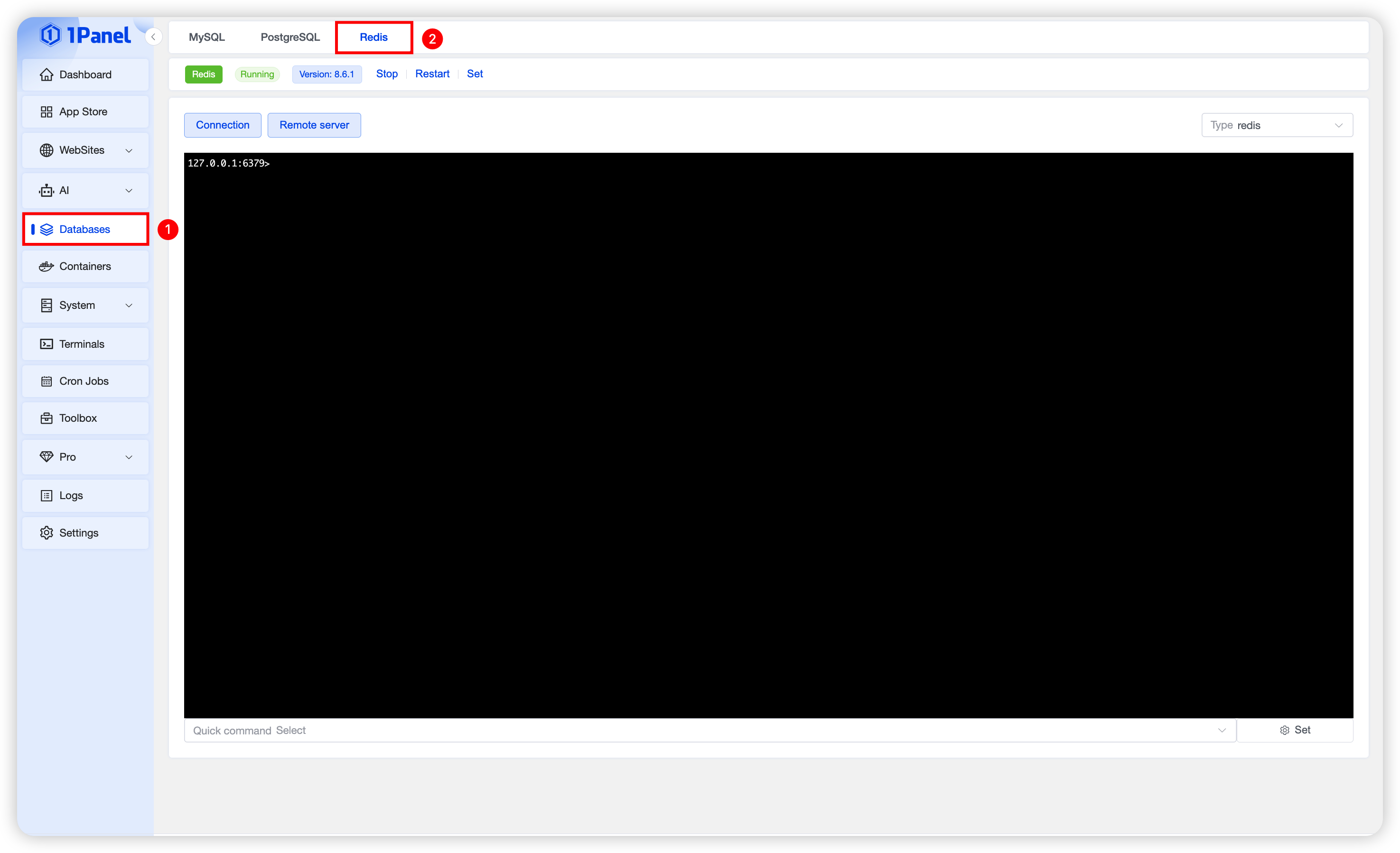

Click Databases in the left menu, select Redis, and you can enter commands directly.

image-20251016142801288

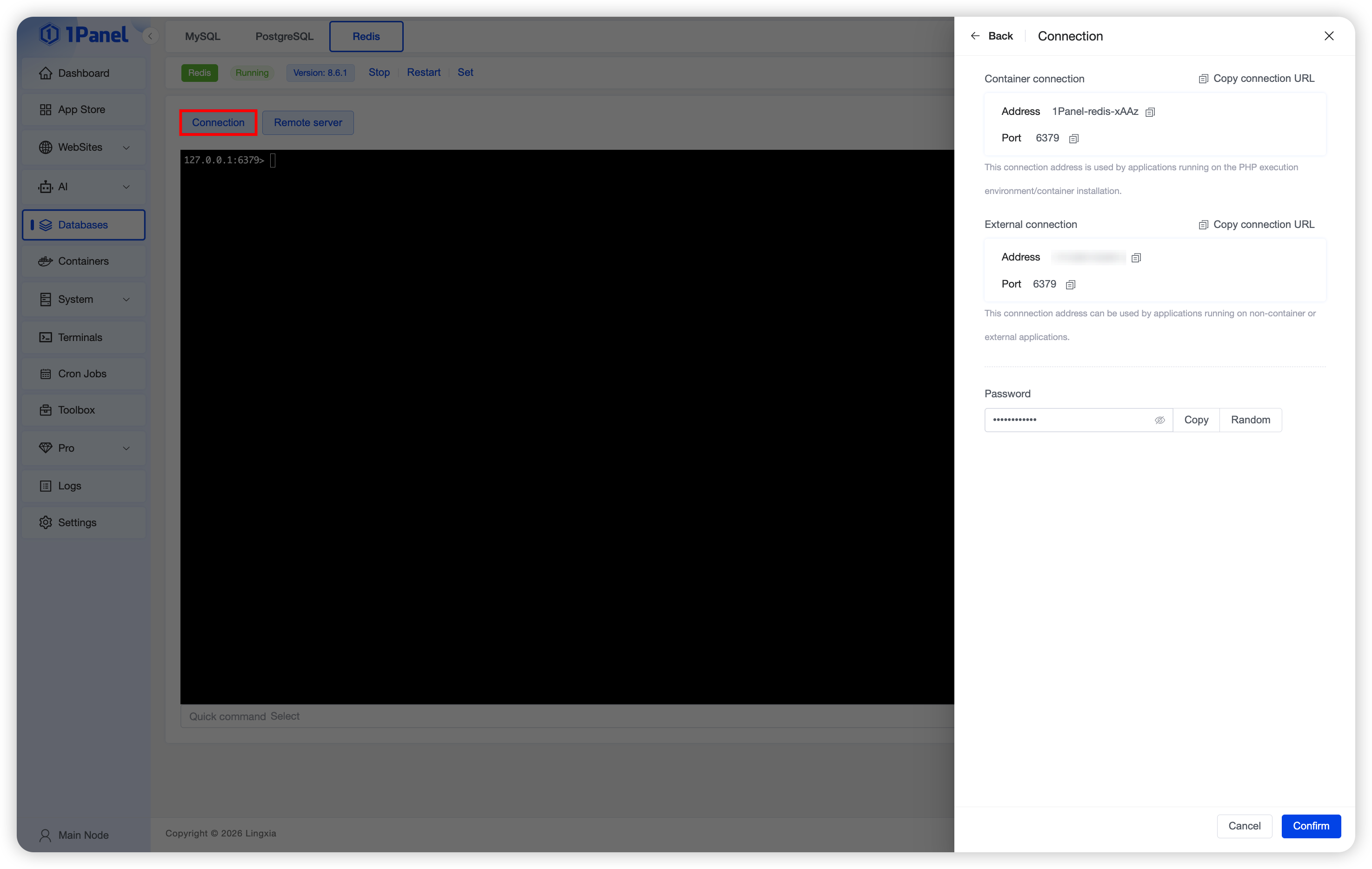

Connect using a client tool. Click Connection Information to get the connection configuration.

image-20251016143234658

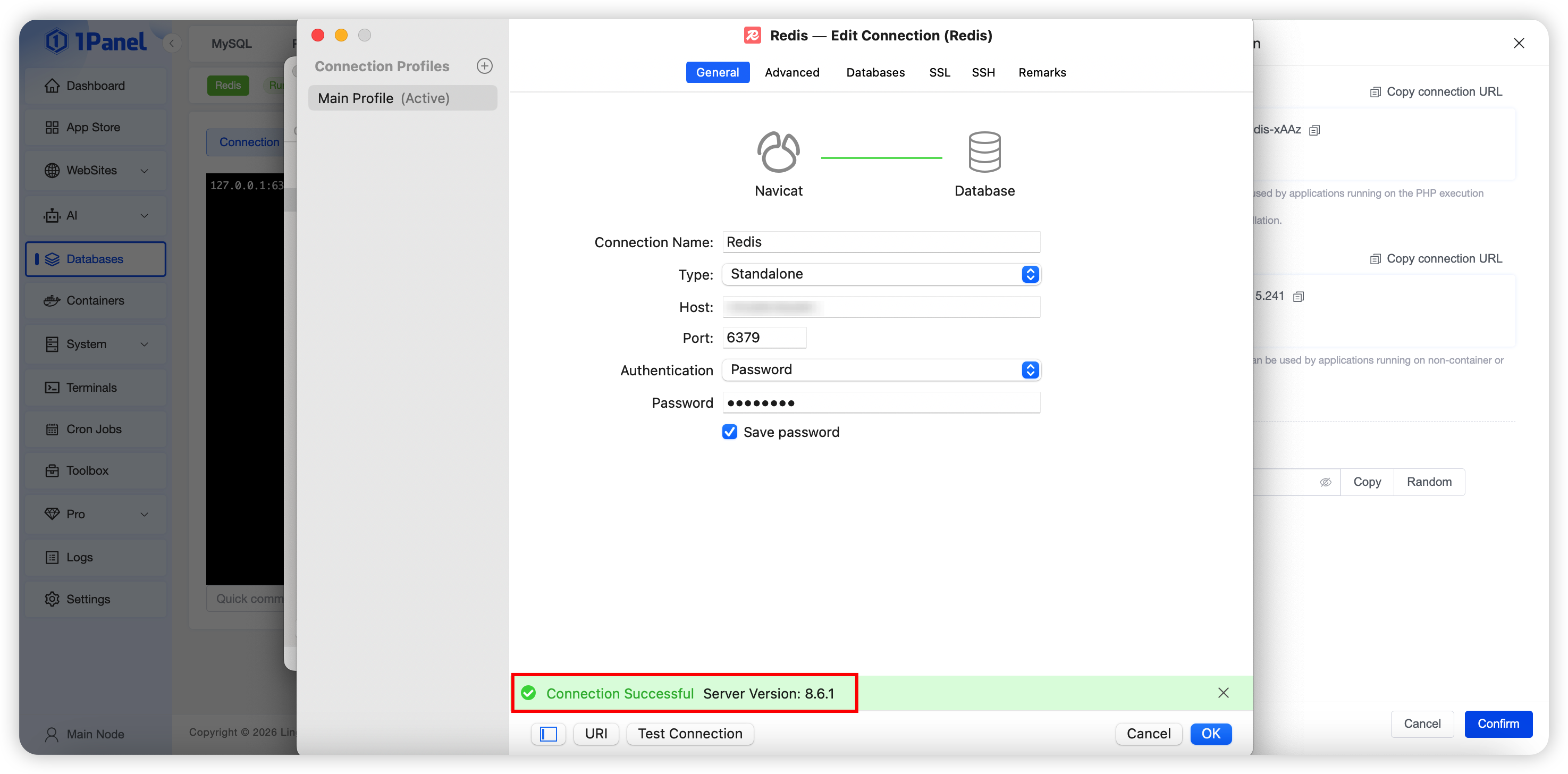

Connect to Redis using a local client tool.

image-20251016144637758
